Triton Series

Air2Water TRITON is a water generating solution that is environmentally safe, yet inexpensive. TRITON captures moisture from outside air and turns it into clean drinking water. In the process of removing moisture from outside air, the air is dehumidified and cooled, making it ideal for indoor environments. TRITON serves two purposes: making water and conditioning outside air with a single source of energy. These factors make TRITON the most unique, energy efficient water making air conditioner available. With 75% of the world's population living within 200 miles of the ocean, TRITON is an ideal solution for the world's water crisis.

*please click play in order to launch the Triton video

Models and Specifications
60Hz Models  Gals/Day @ 85°F, 70%RH Liters/Day kWh @ 85°F, 70%RH kWh/
Gallon
A/C Air LAT Total Btuh LxWxH (in.)   Tons of refrigeration
85F, 70%RH (SCFM) (degrees F)(gr/lb)   Weight lbs. +/-10%
A2WT-25-60 WITH A/C 530 2,006 31 1.40 6,250 60 / 83 359,719 219x 80x 70 6,000 25
A2WT-50-60 WITH A/C 1,080 4,088 63 1.40 12,500 61 / 83 719,438 219x 96x 102 7,250 50
A2WT-75-60 WITH A/C 1,620 6,132 94 1.39 18,750 62 / 83 1,079,156 249x96x102 8,400 75
A2WT-100-60 WITH A/C 2,055 7,778 131 1.53 21,500 59 / 74 1,435,040 249x96x102 9,625 100
A2WT-150-60 WITH A/C 3,350 12,680 190 1.36 36,000 61 /80 2,174,040 341x127x133 14,410 150
*A2WT-HCU2410 188 712 11 1.42 2,000 75 / 60 117,900 112x66x57 3,500 7
*A2WT-HCU3415 310 1,173 17.0 1.33 3,000 73 / 56 191,970 112x66x57 3,500 10
*A2WT-HCUb 4020 399 1,510 25.0 1.50 4,000 76/ 56 242,820 127x66x72 4,250 17
*A2WT-HCU6030 620 2,347 36.0 1.39 6,000 75 / 55 375,030 173x96x72 5,600 25
Prices are in USD and are valid for 30 days
* Utilizes desicant wheel
** Required for water purification - Ozonation and UV light


50Hz Models Gals/Day @ 85°F, 70%RH Liters/Day kWh @ 85°F, 70%RH kWh/
Gallon
A/C Air LAT Total Btuh LxWxH (in.)   Tons of refrigeration
85F, 70%RH (SCFM) (degrees F)(gr/lb)   Weight lbs. +/-10%
A2WT-25-50 WITH A/C 530 2,006 31 1.68 6,250 60 / 83 359,719 219x80x70 6,000 25
A2WT-50-50 WITH A/C 1,080 4,088 63 1.68 12,500 61 / 83 719,438 219x96x102 7,250 50
A2WT-75-50-A WITH A/C 1,620 6,132 94 1.67 18,750 62 / 83 1,079,156 249x96x102 8,400 75
A2WT-100-50 WITH A/C 2,055 7,778 131 1.84 21,500 59 / 74 1,435,770 249x96x102 9,625 100
A2WT-150-50 WITH A/C 3,350 12,680 190 1.63 36,000 61 / 80 2,174,040 341x127x133 14,410 150
*A2WT-HCU2410** 157 594 11 1.42 2,000 75 / 60 163,080 112x66x57 3,500 7
*A2WT-HCU3415** 258 977 17.0 1.33 3,000 73 / 56 191,340 112x66x57 3,500 10
*A2WT-HCUb 4020** 333 1,260 25.0 1.80 4,000 76/ 56 253,620 127x66x72 4,250 17
*A2WT-HCU6030** 517 1,957 36.0 1.67 6,000 75 / 55 383,400 173x96x72 5,600 25
Prices are in USD and are valid for 30 days
* Utilizes desicant wheel
** Derated for 50Hz
** Required for water purification - Ozonation and UV light

Process and Design

process

*Desiccant wheel is only in our HCU models

Outside air passes through an efficient air filter which purifies it by removing dust, pollen, mold spores, and other airborne particulates. The moisture is condensed from the outside air and collected in a UV protected chamber. It is then stored in a holding tank which is ozonated continuously. As needed, water is drawn from the tank, filtered through a VOC carbon filter, and then passed through the ultra violet sanitation light.

flowAdding an evaporative cooler to the front of a water generation system can have a major impact on the amount of water that can be generated by the system. Many parts of the world have ample brackish water available but lack potable water.

Increase Water Generating Efficiency
by 300% on Hot Days

• Uses grey or salt water and allows max water production even in dry climates
• Intelligent control measures ambient conditions to control water flow

Low Operating Cost
• Minimal energy requirements to operate
• Minimal maintenance and replacement of media is inexpensive


Triton Water Plants
*please click play in order to launch the Triton video

As a result of increasing global demand for the provision of large amounts of clean potable drinking water, Air2Water has introduced Triton Water Plants. Triton atmospheric water generators can be installed in a scalable, parallel water system that allows for the delivery of over 100,000 gallons of clean drinking water per day. Click here to download the video showing how a Triton Water Plant looks. Then contact your Air2Water distributor for further details on how we can construct a Triton Water Plant to meet your community's water needs.

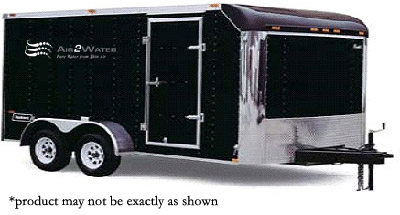

Triton Mobile
mobileAir2Water Triton series units go mobile from 250 to 2500 gallon per day. Whether for humanitarian relief or supplying water to our troops, Triton Mobile is the answer in mobile water solutions. Triton Mobile is a self-contained mobile water unit that comes complete with its own diesel power supply for off-grid deployment. Water is stored on-board in food-grade stainless steel tank and re-circulated to maintain freshness.

The trailer frame comes standard or heavy-duty to handle the most rugged terrain and challenging conditions. Whether you're in-the-know or in the middle of no-where, Triton Mobile is the secure and safe mobile water source of choice.
